The following systems are good examples of the applications of the differential mass balance: Ideal (stirred) batch reactor; Ideal tank reactor, also named Continuous Stirred Tank Reactor (CSTR) Ideal Plug Flow Reactor (PFR) Ideal batch reactor. The ideal completely mixed batch reactor is a closed system. What are the Applications of the Tubular Reactors? You can either use the tubular reactor of the continuous stirred tank reactor to mix ingredients. Both of them have a jacketed tank and stirrer which assist in proper mixing of all the reactants. In addition to that, you will use both types of reactors in continuous reactions. Jul 08,  · The disadvantage of batch reactor is that it requires lots of labour force to constantly charge reactants, discharge products and then to clean the reactor for the next batch. 2. Continuous Stirred Tank Reactor (C.S.T.R) A continuous stirred tank reactor (C.S.T.R) is also often called a mixed flow reactor (M.F.R).

Sizing a Continuous Stirred Tank Reactor CSTR

]

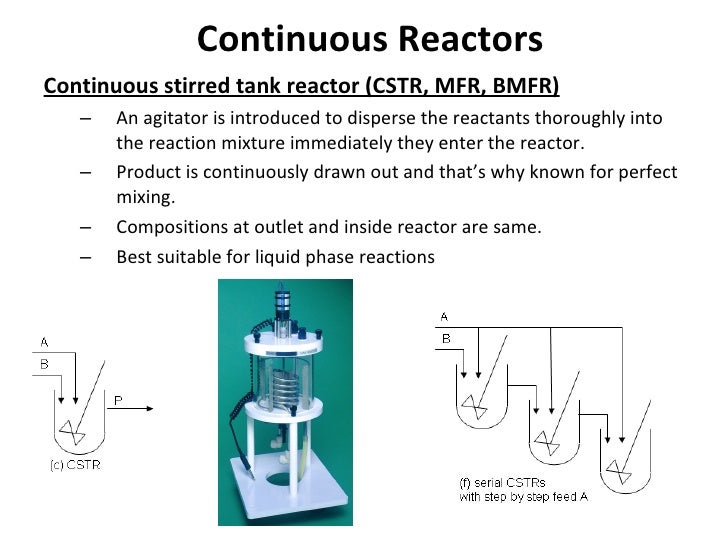

Figure 9 A line diagram illustrating a continuous stirred tank reactor. A steady state must be reached where the flow rate into the reactor equals the flow rate out, for otherwise the tank would empty or overflow. The residence time is calculated by dividing the volume of the tank by the average volumetric flow rate. Feb 16,  · Mixed flow reactor (CSTR) • ideal steady-state flow reactor is called the mixed reactor, the backmix reactor, the ideal stirred tank reactor., it is a reactor in which the contents are well stirred and uniform throughout. Thus, the exit stream from this reactor has the same composition as the fluid within the reactor 5. Jun 06,  · In order to enhance the fluid mixing in the stirred tank and reduce the power consumption under the condition of full baffle, a sinusoidal sawtooth baffle was established in the present study. Based on the Eulerian–Eulerian method, a numerical simulation of the mixed flow in the stirred tank was conducted, and the reliability of the simulation method was .

CSTRs-in-series system. The volume of each reactor was calculated to be mL. The six reactor tanks made from polyvinyl chloride (PVC) were rectangular in shape and connected by overflow the baffle, with each tank being stirred by an agitator (Model , Philips & Bird Inc., Richmond, VA). Figure 1 shows a schematic of the reactor setup. History. The concept of residence time originated in models of chemical reactors. The first such model was an axial dispersion model by Irving Langmuir in This received little attention for 45 years; other models were developed such as the plug flow reactor model and the continuous stirred-tank reactor, and the concept of a washout function (representing the response to a . A leading International company specialising in continuous processing. +44 (0) ; [email protected]; Sign up for our quarterly E-newsletter! Continuous Stirred Tank Reactor (CSTR) Peptide synthesis; Electrochemistry; /フローケミストリ; Resource centre. Resource centre overview; Applications; Publications; Videos.
